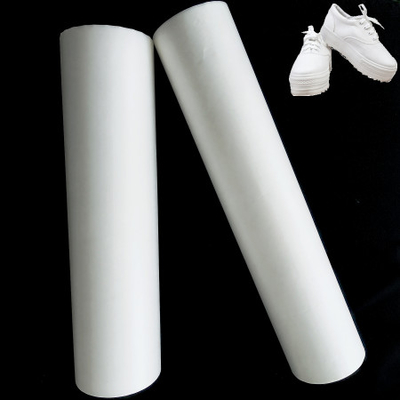

Environmental Protection Transparent TPU Film 0.08mm Thickness For Shoes

Quick detail of TPU Hot Melt Adhesive Film

Main Raw Material: TPU
Usage: Fiber & Garment, Footwear & Leather, Foam and Film Lamination
Thickness: 0.06-0.20mm
Width: normally 140cm 150cm in stock
Length: 100yards
Type: Hot-melt adhesive, Hot-melt adhesive lamination film
How To Use: Hot-melt Lamination, Heat and Press lamination
Application: Shoe insoles, Foam and film lamination, Fabric lamination
Color: Transparent, White
Application: Waterproof bags
Feature: Waterproof Film
Hot Press Temperature: 160-180℃
Hot Press Time: 15-30s
Release liner: Release paper
Density: 0.958g/cm3
Glue Line Temperature: 130 °C to150°C
Melting point: 90°C
Usual thickness: 0.05mm, 0.08mm, 0.10mm, 0.12mm, 0.15mm for choice
Melt Flow Index: 100g/10min Condition:190℃/2.16Kg Load

Specification of Hot Melt Adhesive Film

Product Components

Hot Melt Adhesive Film has two parts: the Film part and the Release Paper part on its back. The Film part is not adhesive under the normal temperature. When it reaches its melting point, the Film part has strong adhesion so that the two materials can be adhered to each other permanently and firmly with the technology of heat press by using the hot press machine.

TPU Hot Melt Adhesive Film is a repeatedly thermoplastic adhesive, which is suitable for a variety of uses, This adhesive works greatly for Fabric, leather, metal (copper, aluminum, iron, stainless steel, etc.), plastic (ABS, PC, PVC, etc.), textiles, etc

Application of TPU Hot Melt Adhesive Film

There are five main types of hot melt adhesive films:


PA hot melt adhesive film, PES hot melt adhesive film, EVA hot melt adhesive film, TPU hot melt adhesive film, PO hot melt adhesive film. Five types of hot melt adhesive films can be used in different scenarios.

1. Composite clothing program: Hot Melt Adhesive Film can be applied to the warm pants, Jackets, underwear, shirts, swim wear and other clothing a number of sub-areas.

2. Complex car interior program: professional research and development of hot-melt adhesives are Applied to roofing, luggage jackets, car carpet assembly and other segments of the market.

3. Shoes composite program: hot melt adhesive film for the upper, insoles, shoes superscript, pads, bags and other sub-areas.

4. Other composite programs: hot melt adhesive film can also be used in the US makeup, home improvement industry, electronic materials, and other fields.

Feature of TPU Hot Melt Adhesive Film

(1) Use imported materials, it is environmentally friendly, good weather resistance, good adhesion, good elasticity, good fastness after washing.

(2) make it with precision machine, strong adhesion, it is convenient, and easy to make, suitable for produce in massive.

(3) Large use area, it is use to bonding shoes, garments, electricity, package, car and so on.

(4) It has prominent bond intensity and elasticity on surface of each material, excellent water resistance, dry cleaning resistance, heat and cold resistance, thermal stability etc.

(5) Strong adhesive ability and washable ability.
